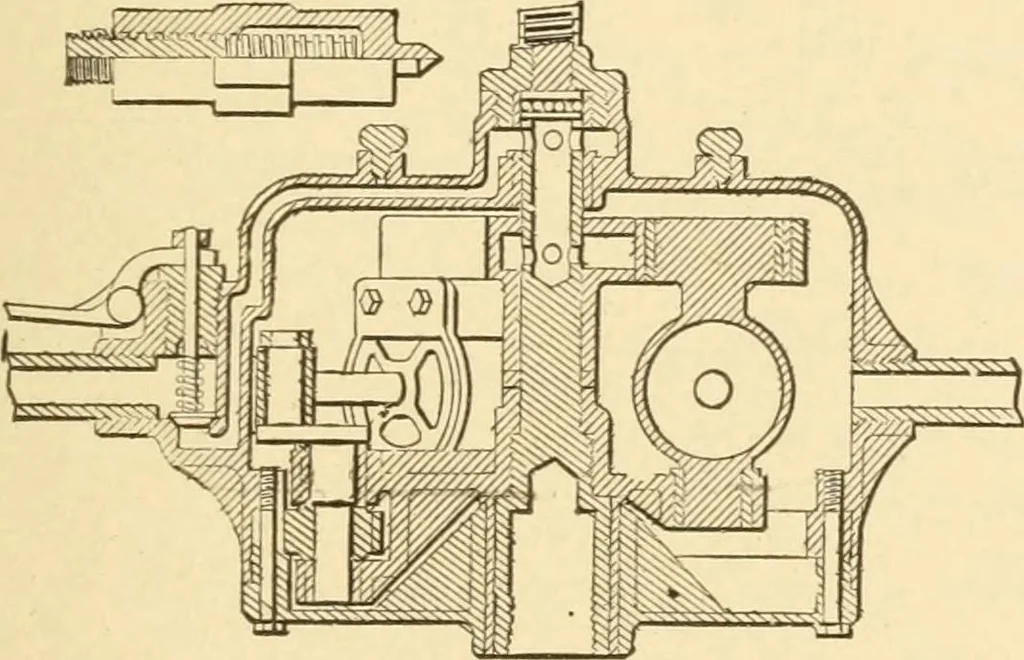

TOCK.—Compressed air enters throughone of the handles with its flow controlledby a lever and valve. Thes exhaust enters the case fromthe port in the oscillating cyl-inder trunnions. The threedouble-acting pistons are di-rectly connected to cranks andpinions which mesh with aninternal spur gear,… … 682. Is the vertical section,showing the compressed airvalve and port passages open-ing into a cavity in the centralspindle and to the trunnionports.
