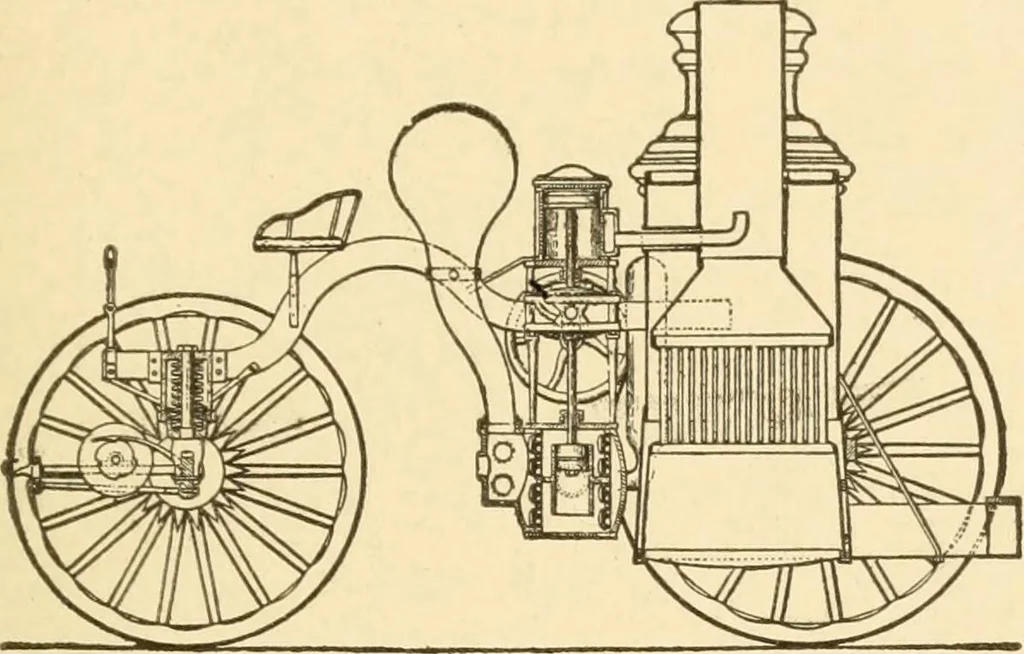

854. SERPOLLETS STEAMTRICYCLE. —A, coil boiler; B,coal bunker; C, water tank. Thecoal shute enters thefurnace and feeds thelire automatically.Water is fed to thegenerator directlyfrom an adjustablepump stroke. SeeNos. 199, 200, 201. NAVIGATION AND ROADS. 221 … 855. STEAM FIREENGINE. Vertical tubu-lar boiler. Vertical steampump, with yoke connec-tion to fly-wheel crank. Gould pattern.
