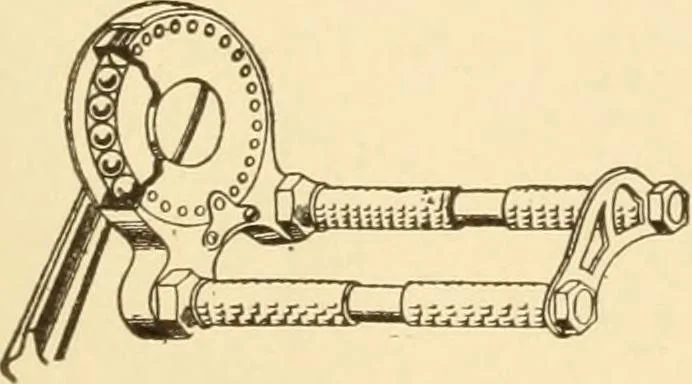

865. BICYCLE GEAR.—Transmission by fore and aft shaft with pin-tooth gearing. Sagar model. 866. Pin-tooth wheel andpinion. 867. BICYCLE CRANK.—A devicefor shortening the up-crank stroke. Theeccentrics are fixed to the frame. Thecranks and eccentric straps revolve onball bearings, carrying by link… … 869. SWINGING BALL-BEARINGBICYCLE FEDAL.-^Carries the feet closeto the ground. 224 NAVIGATION AND ROADS.
