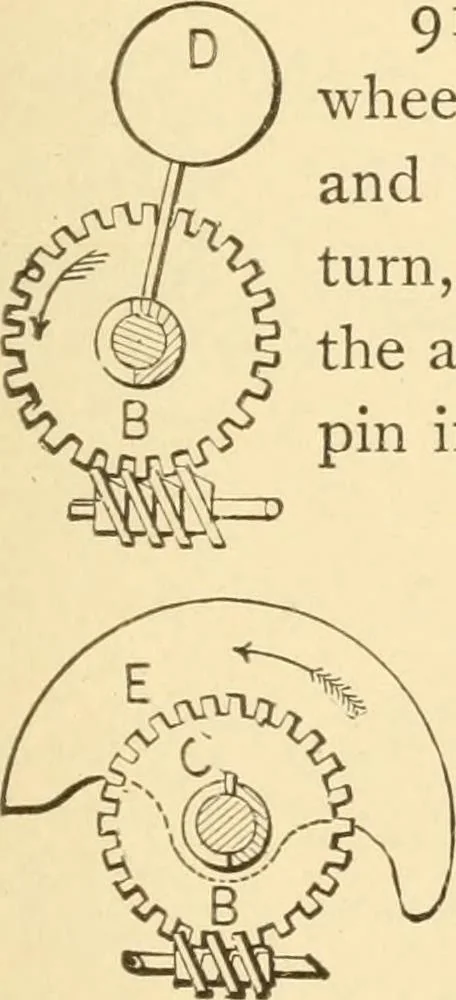

915. INTERNAL WORM-GEAR WHEEL fordriving a spur-gear pinion. … 916. WORM-GEAR PINION to drive an inter-nal spur-gear wheel. 917. ANTI-FRICTION WORM GEAR.—The worm-wheel bearings are on frictionrollers running on pins. 915. RELEASE ROTARY MOTION.—A wormwheel B, fast on a shaft to which is attached a loose armand weight D, that carries the arm quickly over a…
