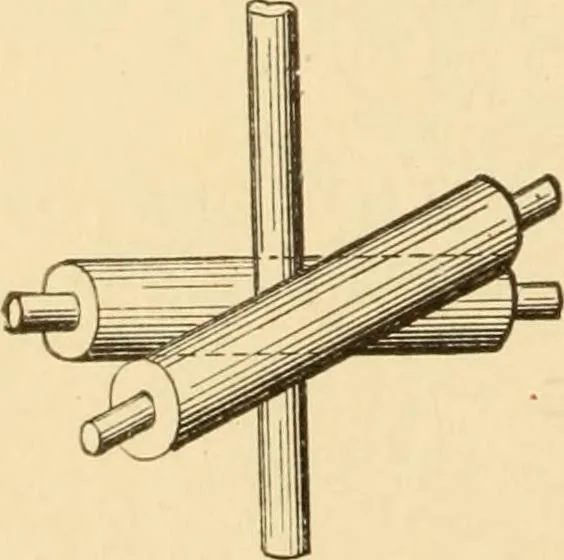

1060. ROCKING ESCAPEMENT.—The section teeth of the wheel pass the eye in therocking cylinder at each quarter, or at eachhalf-revolution when revolving. … 1061. ROTARY AND LONGITUDINALMOTION of a rod between rollers, with theiraxes at an angle. Rollers run in oppositedirections. MOTION AND DEVICES CONTROLLING MOTION. 265 1062. RECIPROCATING FEED RATCHET.—For an intermittent feed, one pair of jaws may have areciprocating motion. For continual feed…
