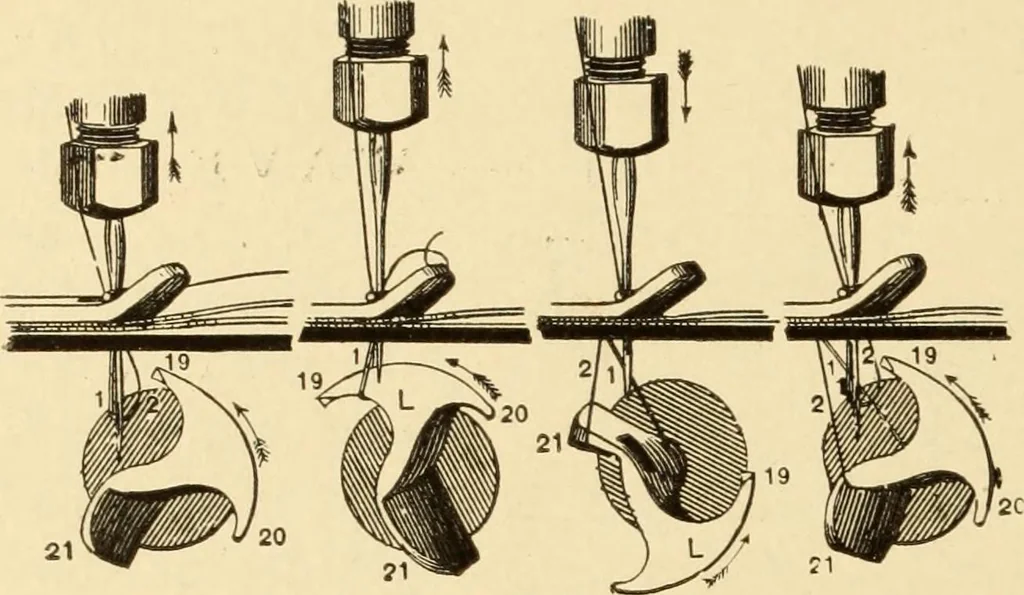

ir^ from a pier. The twoexits represent a single and double acting transmission. 282 MOTION AND DEVICES CONTROI^LING MOTION. 1145/. ACTIONOF THE HOOK inthe Willcox & Gibbssewing machine.—1st. the loop formedby the up stroke ofthe needle; 2d, hookcatches the loop; 3d,loop reversed andspread:… … caught
