Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 302

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox, 1914, leaf 302

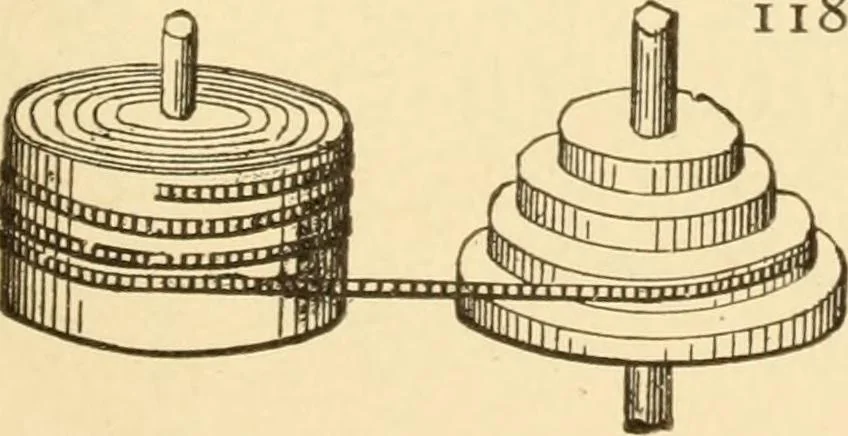

he lever, throwing itagainst the stop pins at its other end. 1186. ARNOLD CHRONOMETERESCAPEMENT.—The spindle of the oscillat-ing pallet a carries a small stud that vibratesthe light spring /, in the hook ^, of the stopspring A. The stop a catches and holds a toothof the escapement while a reverse… … 1187. FUSEE CHAIN AND SPRINGDRUM, used in watch and clock move-ments. This device compensates forthe variation in the force of the spring. 292 HOROLOGICAL. 1188. CHRONOMETER ESCAPEMENT.— P, the impulse pallet on the arbor disc of thebalance wheel; V, a release tooth on the arborwhich strikes the…
