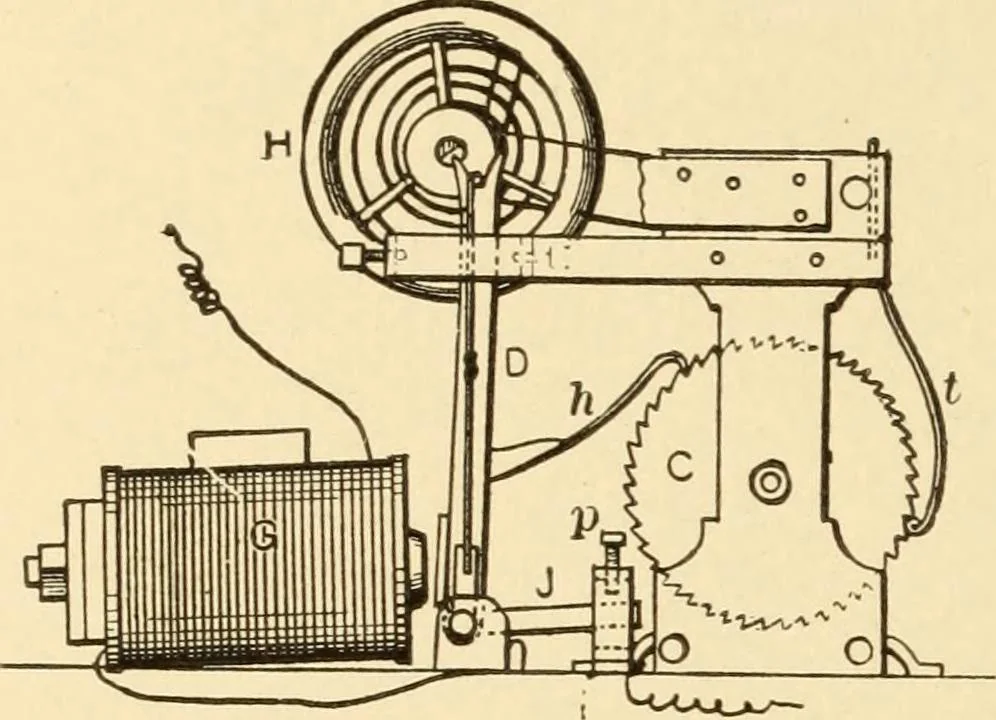

294 HOROLOGICAL. … 11946. ELECTRIC BAL-ANCE WHEEL CLOCK.—G represents the magnet, Hthe balance wheel, D armature,VI a pin on the balance wheel,C ratchet wheel, h and / arepawls, P adjusting screw.When the circuit is closed themagnet draws the armature Dforward, whereby the ratchetwheel C is turned the distance of one…
