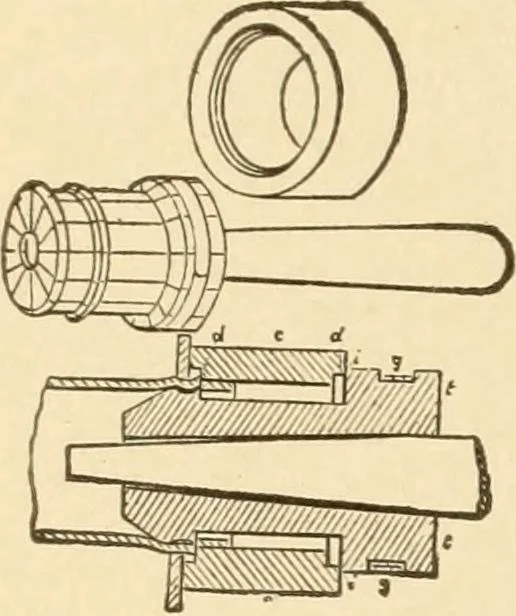

1332. WOOD- BENDINGCLAMPS AND FORMERS.— Strips of wood are thoroughlysteamed and bent while hot overthe formers and clamped. 1332A. Offset clamp. 1333. Thill clamp. 1334. Bend clamp 326 MILL AND FACTORY APPLIANCES. … 1335. BOILER TUBE EXPANDER.—Aseries of sets surrounding a conical driving pin. Prosser percussion type. A guard ring fixesthe proper position of the expanding grooves ofthe sectional sets to match the tube head. 1336. Longitudinal section. 1337. ROLLER TUBEEXPANDER.—The rollersare loosely fitted in…
