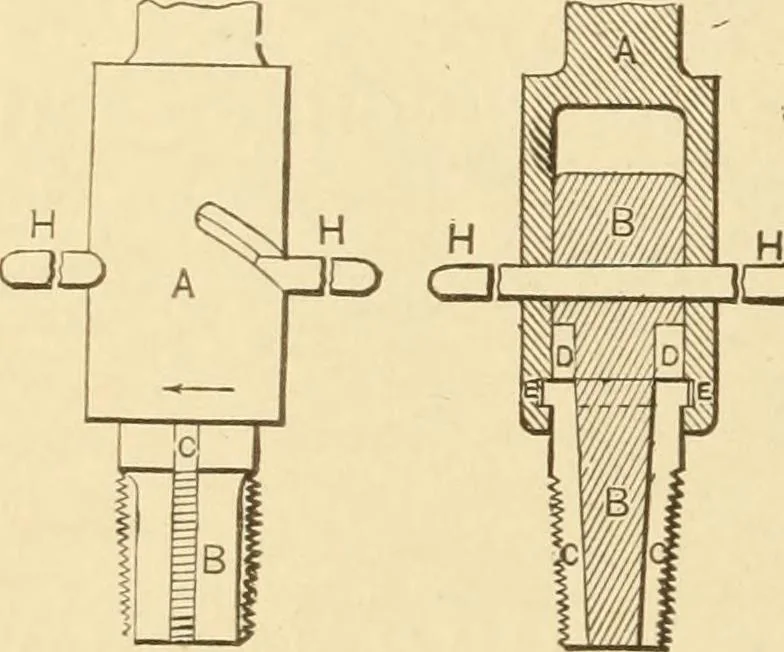

1338. REVOLVING TOOL HEAD,for a Monitor lathe. … 1339. COLLAPSING TAP—Thehook cutters C, C, slide in the tapershank B, and are drawn up to their full 3if5 diameter for cutting by turning the shankhandle in the inclined slot in the shell,and the reverse motion of the handlefor collapsing the tap. 1340. Longitudinal section.
