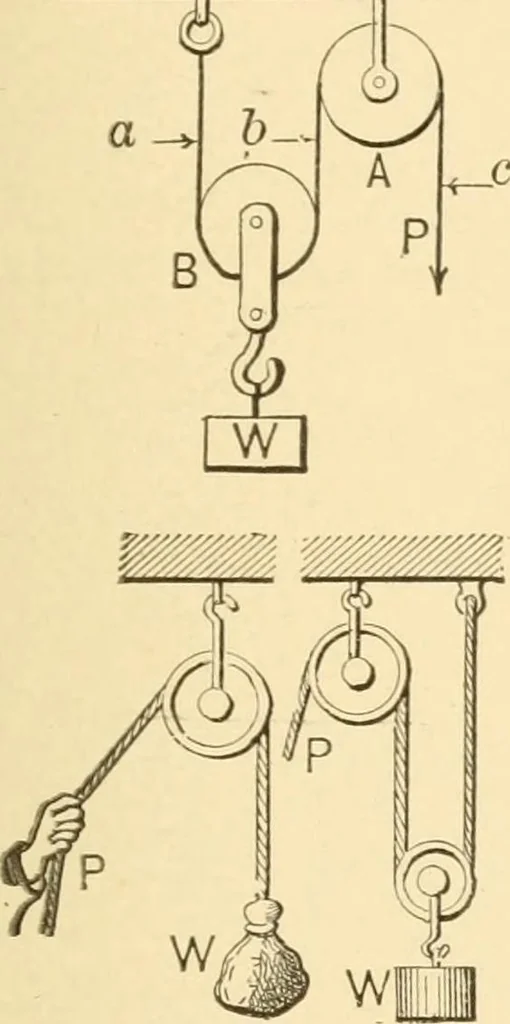

27. CHINESE WHEEL, or differen-tial axle, with crank or pullej. a = radius large drum. d = radius small drum. W — P X r X 2 ■p = WX(a — o) THE MECHANICAL POWERS. 23 TACKLE BLOCKS. ^ Jj ^ 28. Two single sheaves, a^ b^ c are of equal d J strain, a ^ b — \V. Sheave A only transfersthe direction of P. … 29. Simple sheave block. P = W. 30. Two single sheave blocks—upper onefixed, lower movable. P=: W 2 .x^^^^^^^^xxx^x.x- 21. Three single sheave blocks—one block fixed, two blocks movable. p = \^^ -—. w = P X 4.4 32. Three smgle sheave blocks, consisting of two fixed
