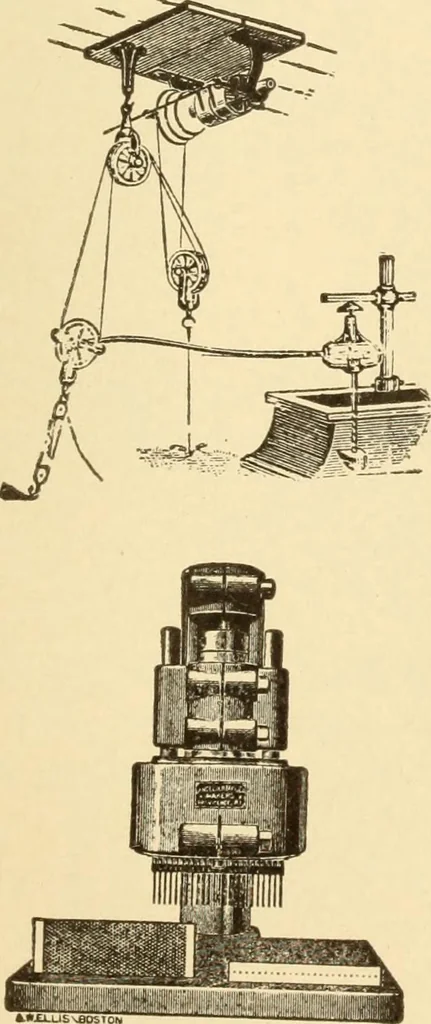

1356. POWER STAMPING PRESS. —Driven^ from a pulley with crank or cam shaft. A miss im-pression is made by a stop-clutch operated by a foottreadle. 1357. HAND DRILLING MACHINE, withlever feed. … 1358. PORTABLE DRILL, rope trans,mission and flexible shaft. One continuousrope over driving pulley, two double sheavesanchored, and flexible shaft pulley; allow-ing the driving sheave of the flexible shaftto be anchored in any position, and forlightening the driving rope. 1359. MULTIPLE DRILLING…
