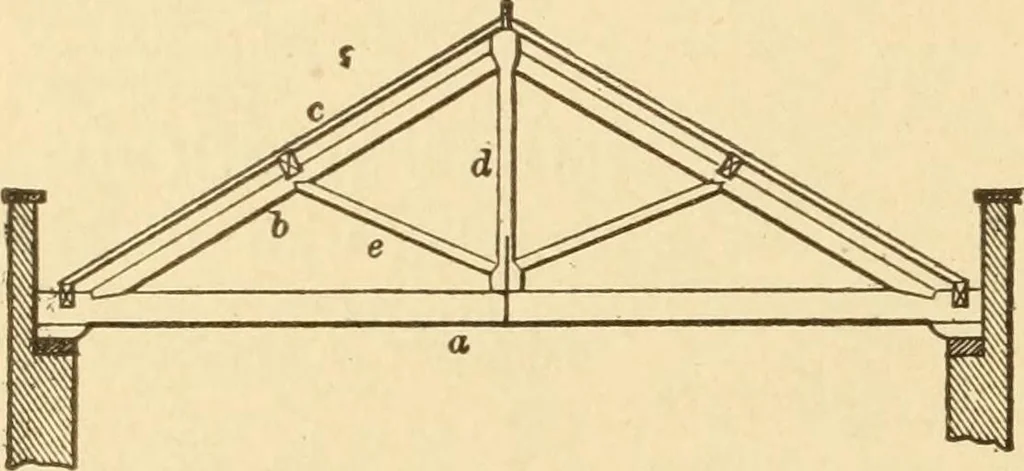

ICING.—A lap ^ and scarf butt joint, keyed with oak and locked with anchor fish plate and bolts. 35^ CONSTRUCTION AND DEVICES. ^ XT *ur^ % 1479. TIMBER SPLICING. ^ —Butt joint with timber fish plate,y keyed and bolted. •-^ 1480. TIMBER SPLICING. —Butt joint with double ^ timber fish plates, bolted.… … 1483. TRUSS ROOF. a, tie beam. ^, principal rafter. <r, common rafter. d, king post. e, strut. 1484. QUEEN POST ROOF TRUSS. a, tie beam ; ^, <r, queen posts; d, d, braces; e, truss beam; /straining piece; ^,^, prin-cipal rafters; /i, cambered beam; d, iron string bolt to support tiebeam.
