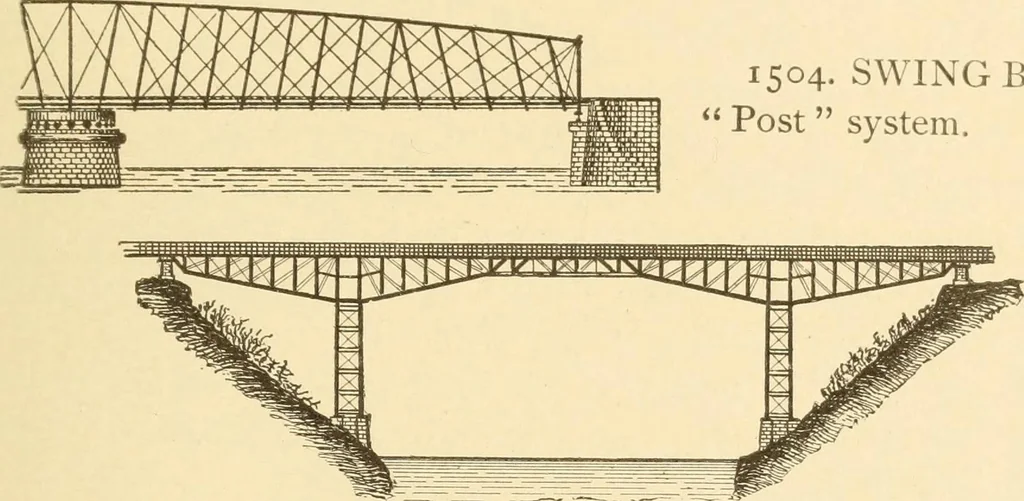

1499. Modification ofthe Whipple and War-ren systems. 1500. Modification ofthe Whipple and Postsystems. The Warren bridge. 1501. The Fink system.A railway deck bridge.No lower chord. 1502. The Bollmansystem. A girder suspen-sion. The top girder car-ries the compression loaddue to suspension.… … 1505. CANTILEVER BRIDGE.—The ends, bemg anchored,balance all other parts on the piers. This cut shows the principle ofCantilever construction. 1506. SUSPENSION BRIDGES— rtq 111 ^^rr^.wmm^z^^ts^ The old railway bridge at.Niagara. Eight hundred andtwent}^-one feet span. 1507. A four-span suspen-sion…
