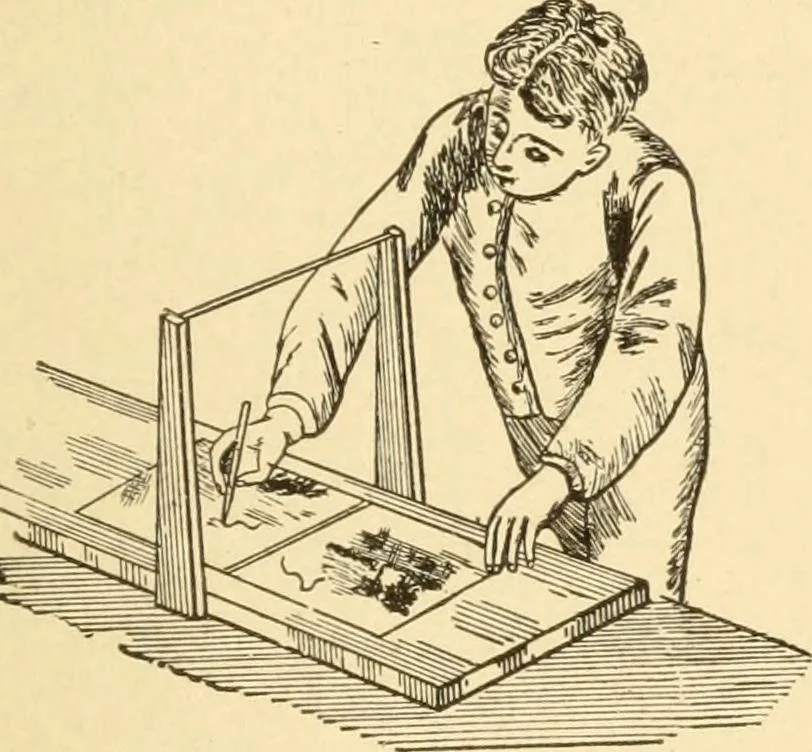

extended for any proportion. iSSi^-. TRACING BAR.—The yoke-shaped needlebar has tracing points inHne with the gimbal ringbearing. The points may be … 1531/. REFLECTING DRAW-ING BOARD.—A vertical plate ofglass in a frame on a drawing board.The picture on one side and a plainsheet of paper on the other side ofthe glass. On looking into theglass on one side the picture isplainly projected on the other, andcan be readily traced with a pencil.
