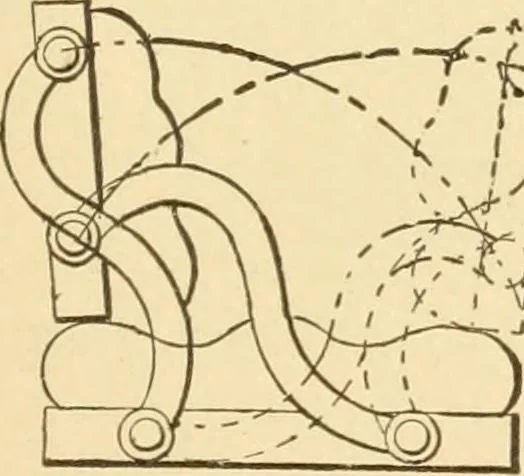

1599. CABLE GRIP FORSTREET RAILWAYS.—^, h, grip jaw^s and blocks; r,pull-up to throw the cable outof the jaws; d^ d, frameplates; <?, grip plate connectedto b, and operated by the bellcrank levers g,g\ f,f, pull-upattached to frame and dis-engaging pieces c, c. 1600. End view of grip. … .—^.^^ 1601. LINKED HINGES for reversing cai^^ - k) seat backs. V ^86 MISCELLANEOUS DEVICES.
