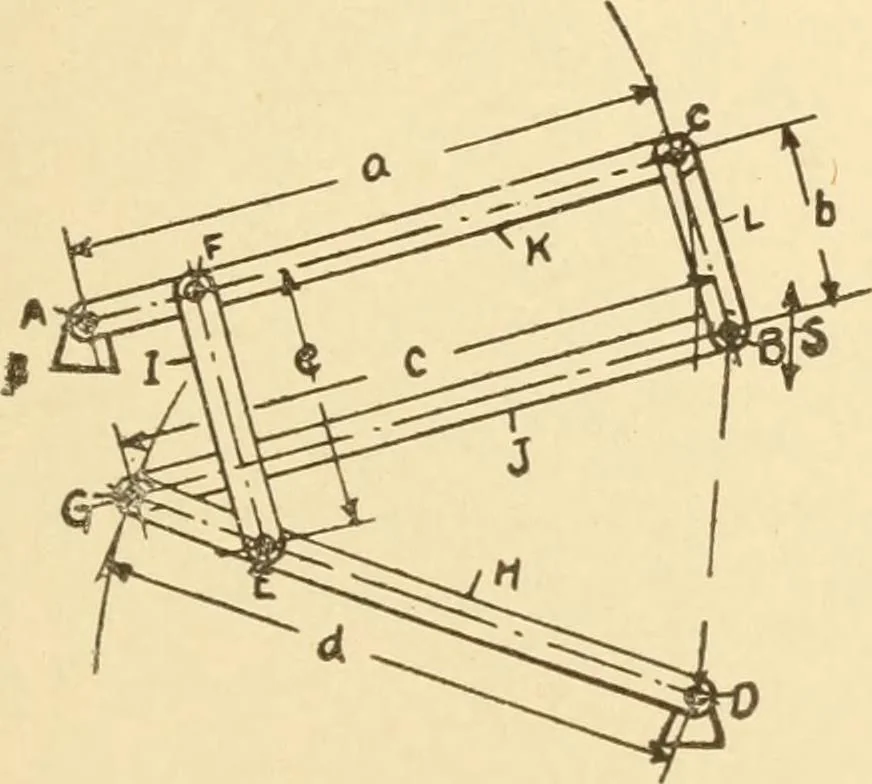

.—Levers K and H are con-nected to links I, J, and L. //ispivoted at D and swings at a radiusequal to d. / is a link connectedto // at G and to L d.t B. L is alink connected to / at 5 and K at c.K is a. link pivoted at A and con-nected to L at C, swinging at aradius equal to a, and having a link/… … 39« STRAIGHT LINE MOVEMENTS. LINE MOTION WITH TWOLEVERS AND ONE LINK.—.^ Levers X and Z are connected by^/^link Y. Z is a lever pivoted at Eand connected to F at ^. Z is alever pivoted at D and connected toF at C F is a link connected toX at A and to Z at C, the end B moving in a straight line.…
