Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 46

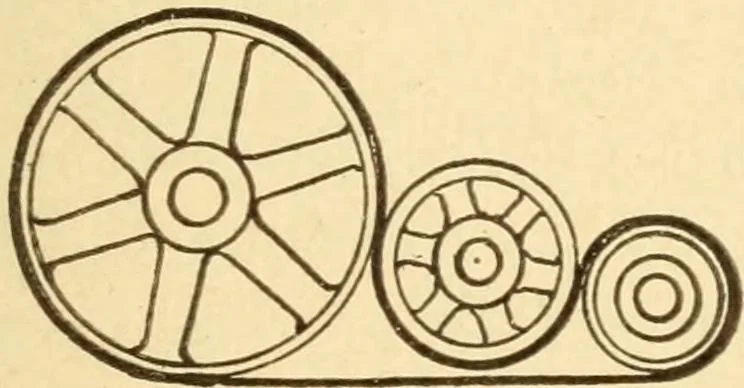

92. BELT TRANSMISSION, for short belt andclose connection. The belt is wrapped close to andpressed against the driven pulley by a tighteningpulley. For electric motor power or the driving ofgenerators. 93. BELT TRANSMISSION OFPOWER, at close range. A combinationof friction gear increased by belt… … ^mmmwwmwwj) 94. VARIABLE TRANS-MISSION OF MOTION,from an eccentric conicalpulley to a friction pulley.The riding pulley C traverses the cone, which moves forward or backward by the rotation of thescrew in the nut stud E, producing a progressive variable motionin the pulley C, increasing or…
Mechanical movements
