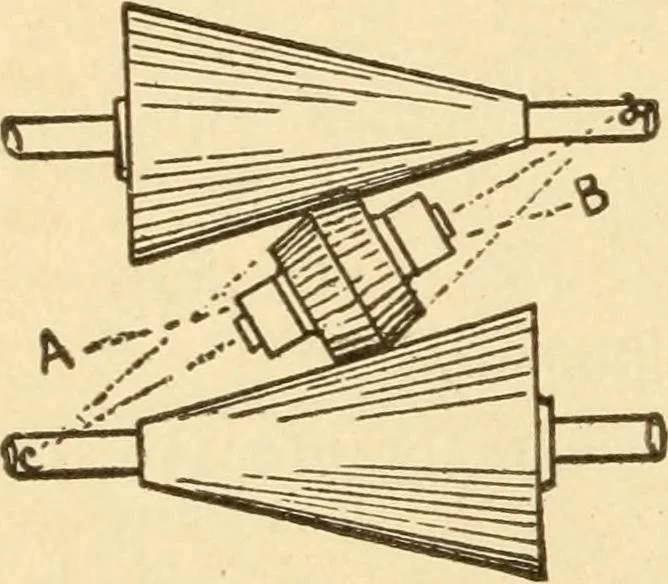

105. FRICTION GEAR, traversingmotion. A, the driver. B and C are faston the clutch sleeve which is free to slideon a feather on the driven shaft. The leverbrings B or C in contact with the drivingcone A for reversins:. … 106. FRICTION GEAR.—Variable speed from a pair of cone pulleys, one ofwhich is the driver. A double-faced frictionpinion is moved on the line A, B in contactwith both cones.
