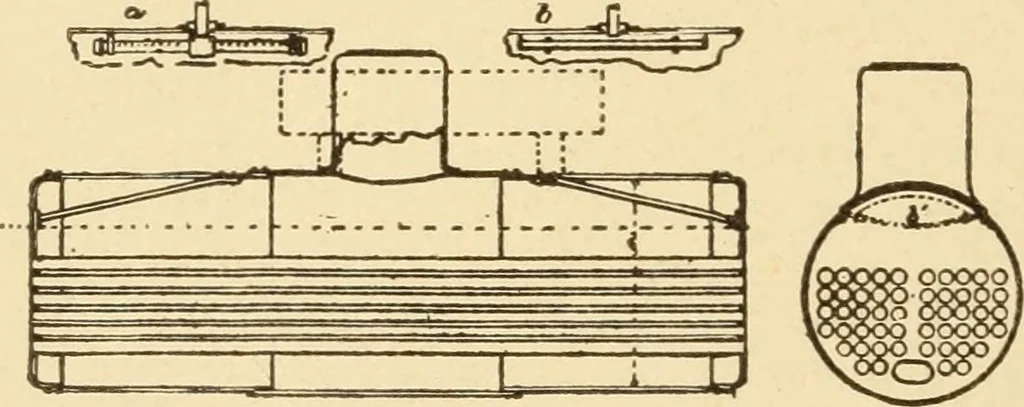

176. INTERNALLYFIRED FLUE BOILER. —The flue and half theshell surface, if exposedto heat, divided by 14,equals horse-power. … 177. HORIZONTALTUBULAR BOILER, with steam and dr}- steampipe. i7, Dr) steam pipe.One-half the shell and allthe tube surface, dividedby 14, equals the boilerhorse-power.
