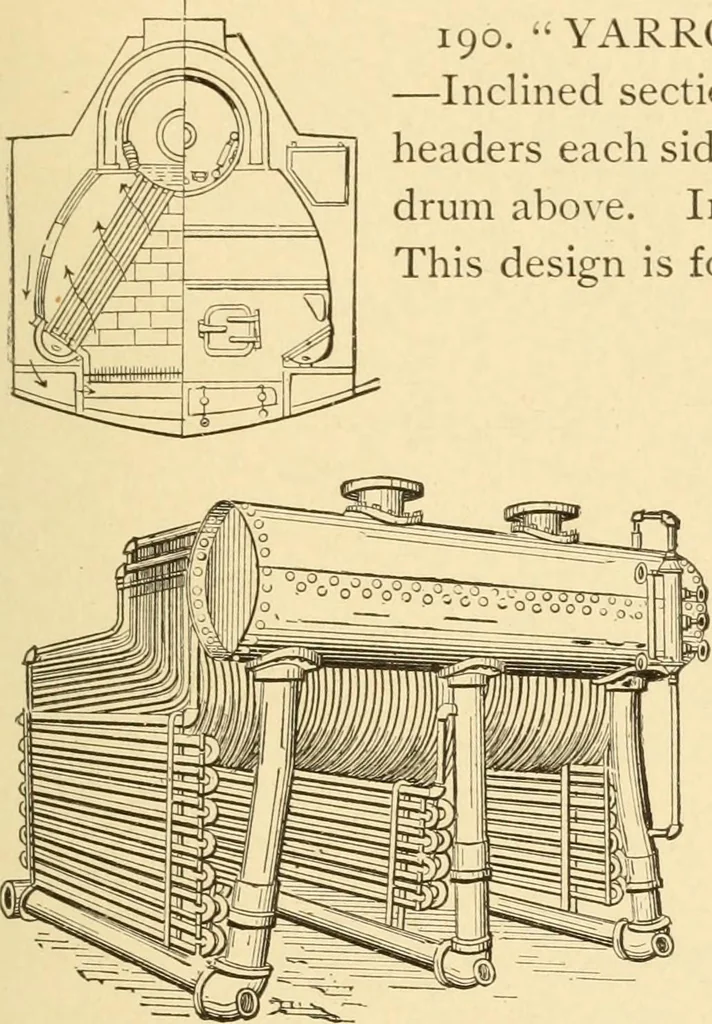

188. THORNYCROFT BOILER.—A large steel drum above and a waterdrum below, connected with a large num-ber of bent tubes. The water return isthrough a large tube at the rear end ofthe boiler. 189. SEE WATER TUBE BOILER.— A series of short straight tubes connecting a hori-zontal steam drum with a… … 190. YARROW WATER TUBE BOILER. —Inclined sections of straight tubes from water-headers each side of the lire grate to a large steamdrmn above. Iron casing lined with fire tile.This design is for a marine boiler. 191. BOYERS WATERTUBE BOILER. —Furnace walls are coils of pipe. Coilsover the fire are…
