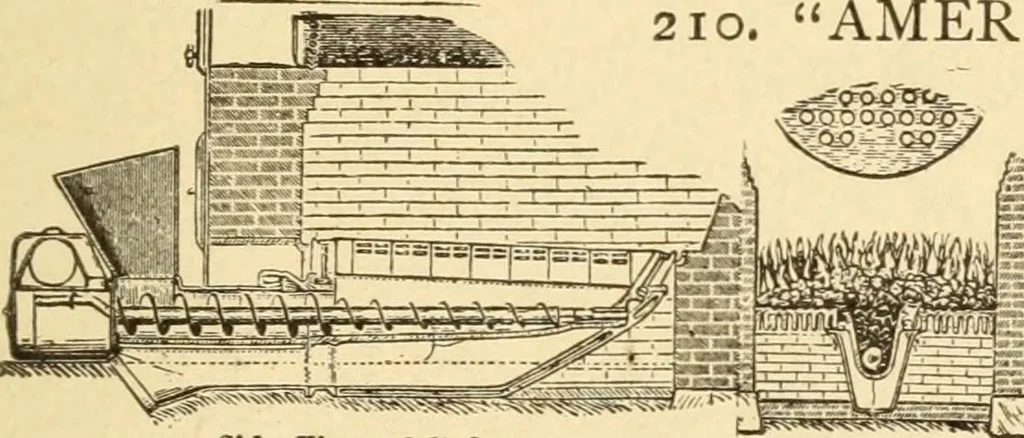

209. PLAYFORD MEGHAN-ICAL STOKER, for soft coal. Alink grate moved by a sprocket shaftcarries the coal, fed by a hopper,forward under the boiler, returningover a drum shaft at the bridgewall. A screw conveyer brings theash and clinker forward to the pit. … 210. AMERICAN BOILER STOKER.—The coal is carried underthe grate from the hopperby a spiral screw and forcedup over the grate. Sid« View of Stokw,
