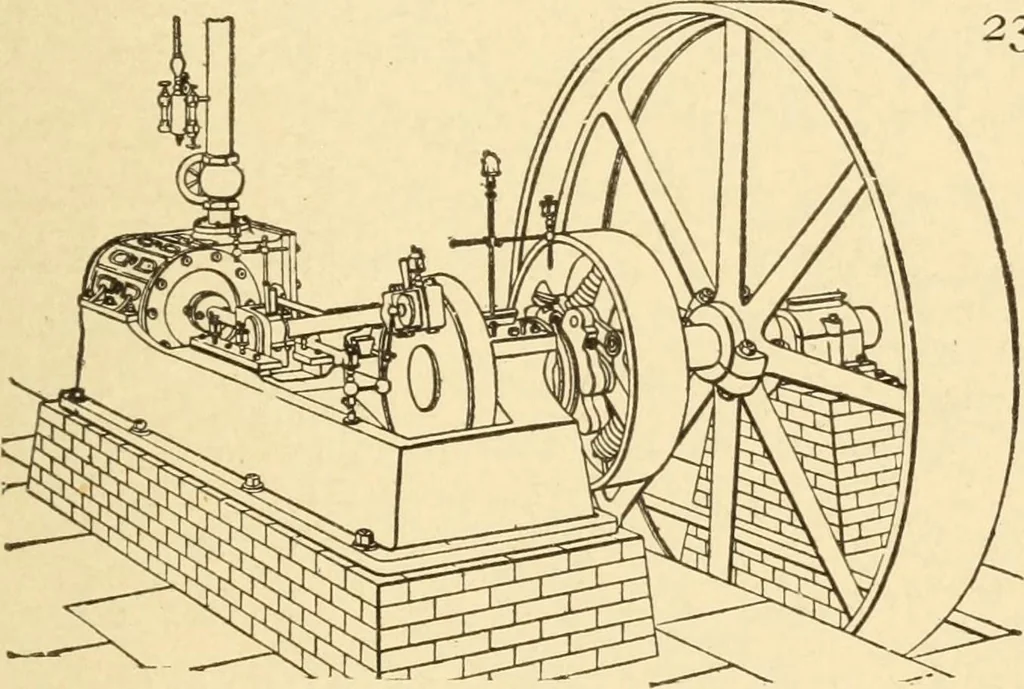

234. MODERN HIGH-SPEED ENGINE,with pulley gover-nor, Atlas model. 238. SINGLE D SLIDE VALVE,with lap. The length of the valve overthe length from outside to outside otsteam ports is double the lap. ^^^^^ 2-39. BALANCED SLIDE VALAE.—A ring in a recess of the valve rides againstthe steam chest cover,…
