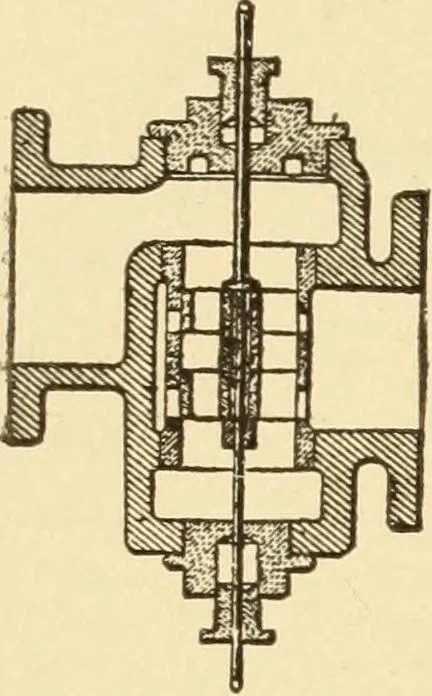

74 STEAM POWER. 250. WING THROTTLE VALVE, or ButterflyThrottle, operated by direct connection with a gov-ernor. … 251. MULTIPLE PORT PISTON THROTTLEVALVE.—A perfectly balanced valve with throughconnecting rod.
