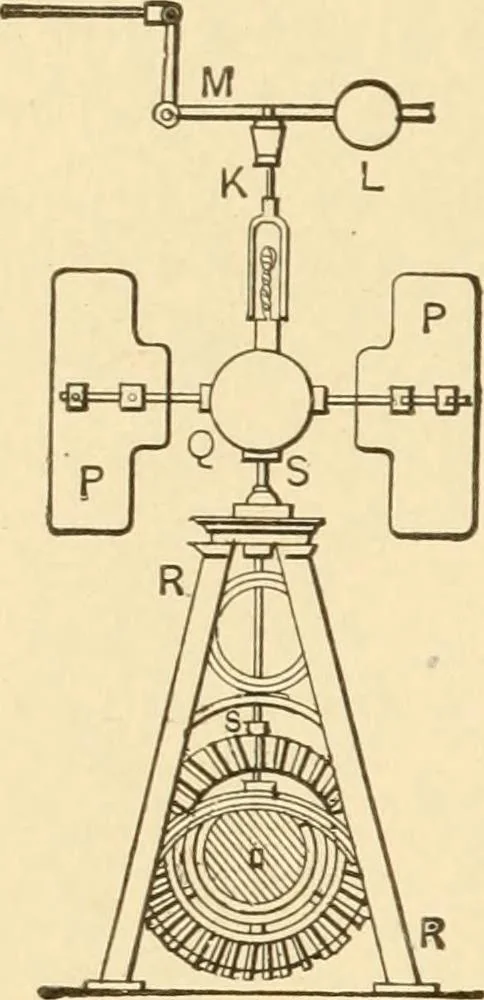

86 STEAM POWER. … 305. VANE OR WING GOVERNOR.—The resistance of the vanes P, P to the air by their variable speed from the engine gear, lifts ordepresses the ball Q, connected with the wings, by-means of a quick-pitch thread and nut on therevolving spindle, causing a movement of theweighted bell-crank lever M, L,…
