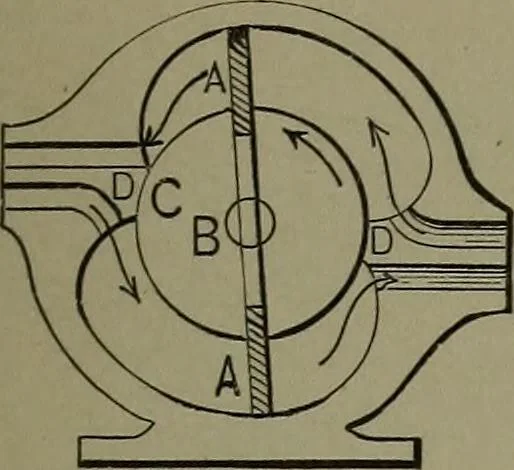

326. FRANCHOT ROTARY ENGINE.—A slotted concentric cylinder carries a con-tinuous solid wing across and in contact with theinterior surface of an ovoid shell, shaped for ex-act diameter in all directions on the eccentricaxis of revo ution. STEAM POWER. 9 … 327. DOUBLE SLIDE PISTON ROTARYENGINE.—In this engine the shaft and pistonbarrel are concentric, while the walls of the steamchambers are ovoid. A difficult form of con-struction.
