Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 100

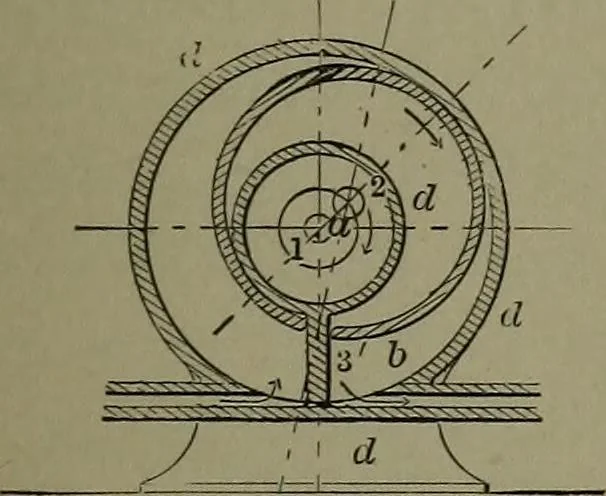

327. DOUBLE SLIDE PISTON ROTARYENGINE.—In this engine the shaft and pistonbarrel are concentric, while the walls of the steamchambers are ovoid. A difficult form of con-struction. … 32S. LAMB ROTARY ENGINE.— An annular cylinder with a fixed partition be-tween the inlet and outlet. The piston is ahollow cylinder with a longitudinal slot,which slides up and down the partition, theoutside of the cylinder wiping the inner surfaceof the shell. The centre cf the traversing cylinder…
Mechanical movements
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
