Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 133

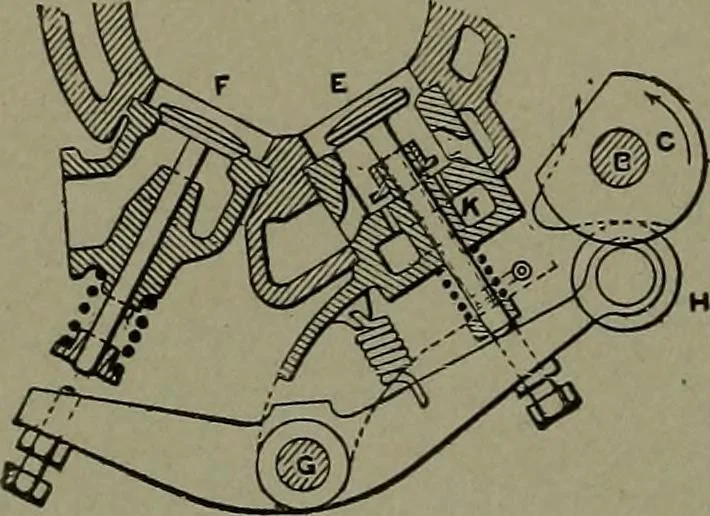

444. INLET VALVE for gas engine.A valve disc slightly held in contact withthe seat by the spring. Air holes should b^drilled close together around the valve seat,so that combined air area shall be largerthan the area of the gas inlet. … 445. GAS ENGINE VALVE GEAR.—E, Inlet valve; F, exhaust valve. Valvesare operated by a bent lever, with slidingroller H and double cam C, which bv agroove rides the roller alternately on to thecams. drawn 446. GASOLINE VAPORIZER. — The inlet nozzle, V, is ribbed onthe outside and is enclosed in…
Mechanical movements
