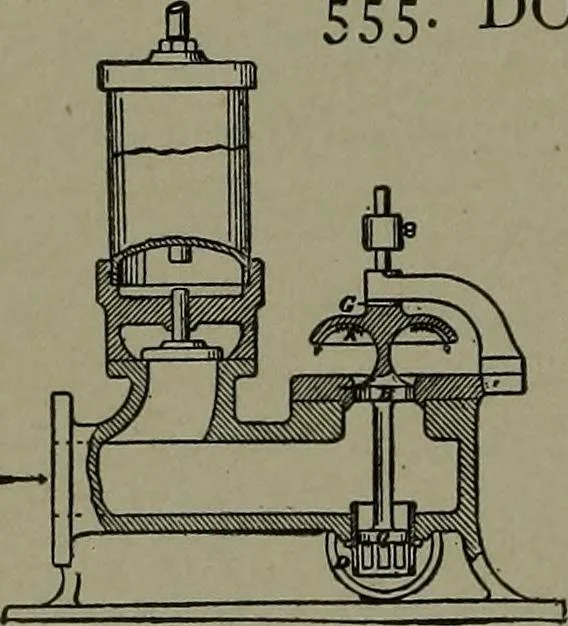

554. SILENT HYDRAULIC RAM.—The curved reaction disc, F, serves to lift.the piston valve, C, quickly without shock.The air cushion at G stops the lift at the mo-ment of closure of piston valve, C. J, a stop>set-screw ; H, valve cage ; B, force valve ; K.force pipe; I, vent hole to air cushion. … 555. DOUBLE-PISTON REACTION HYDRAULICRAM.—The two pistons, B and O, are on thesame spindle with curved reaction disc, A. Gis a leather washer to soften the contact withguide yoke. The cage at D guides the lower-piston and serves to increase greatly the free-dom of water-flow from the drive pipe,…
