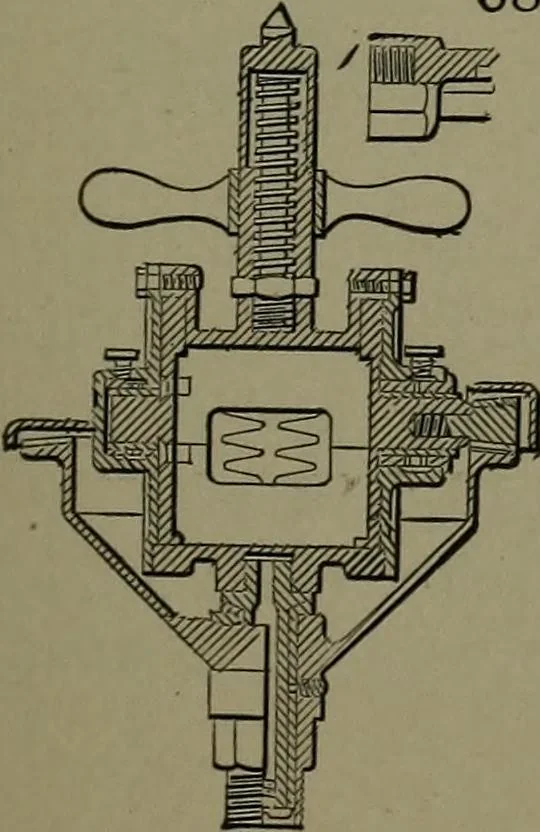

682. Is the vertical section,showing the compressed airvalve and port passages open-ing into a cavity in the centralspindle and to the trunnionports. … 683-684. PNEUMATIC MOTOR DRILL STOCK.—A horizontal rotary motor, over the centre ofthe spindle, carries on one end of its shaft abevel pinion, which drives a bevel gear attached by the lower section of thecase to the drill spindle.The inlet and exhaust portsand valve are shown in thevertical…
