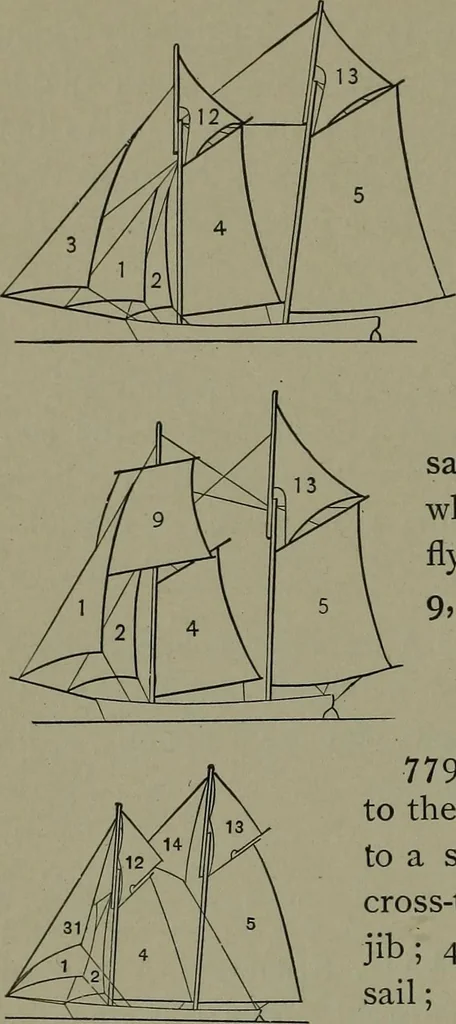

775. THE CUTTER.—A mainsail, 5 ; jib,2; flying-jib, i, and topsail, 9, are the mainfeatures of a cutter-rig. 776. SCHOONER RIG.—Fore-and main-sail bent to the mast, boom and gaff. Jib stayedto bowsprit. 2, jib ; 4, foresail; 5, mainsail. 208 NAVIGATION AND ROADS. … 777. FULL SCHOONER RIG.—• Main- and fore-sail, two or three jibs,and two topsails, i, flying-jib ; 2, jib;3, fore top staysail; 4, foresail; 5, main-sail; 12, fore gaff-topsail; 13, maingaff-topsail. 778. TOPSAIL SCHOONER. —Thesame rig as a schooner, except the foretop,which is a square sail bent…
