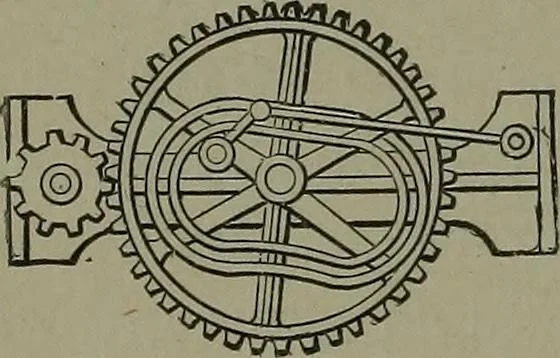

900. MANGLE RACK with stationary pinion.The rack and slot frame are jointed to the manglebox, riding in mesh with the pinion by the slotguide, leaving the mangle box free to ride and tipon the rollers. … 901. ALTERNATE CIRCULAR MOTIONfrom continuous motion of geared wheels. Agrooved cam revolving with a geared w^ieel pro-duces a variable or alternate motion to a crank,through a pin in the groove connected to the crank and to a fixed point by a connecting rod.
