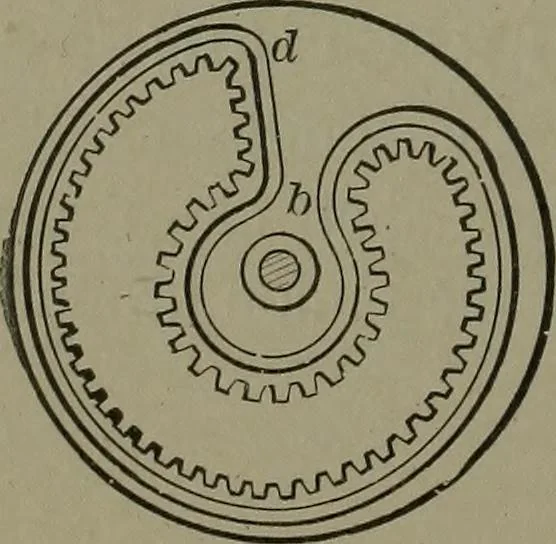

902. MANGLE WHEEL with equal motionforward and return. The pinion moves over thesame teeth in both motions. The pinion movesvertical in a guide slot, not shown. The end ofthe shaft is guided vertically by the groove keep-ing the pinion teeth in mesh. 903. MANGLE WHEEL GEAR in the oper-ation of…
