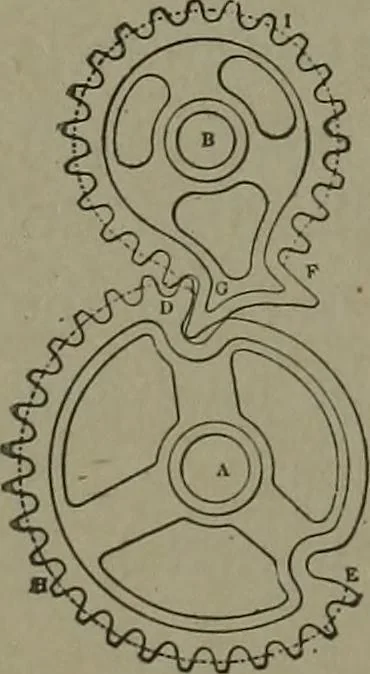

954. INTERMITTENT MOTION OF SPURGEAR.—A is the driver. The pin J and the dog Lare on the front side of the gear; the pin R and dogP are on the back. This class of gears may be madein varying proportion to suit the required stop motionof the gear B, A being the driver. … 955. INTERMITTENT MOTION OF SPURGEAR, in which the dogs G and F form a part of thedriven gear B. This form allows of varying propor-tions of stop and speed motion in the two gears. A isthe driving gear. GEARING. 243
