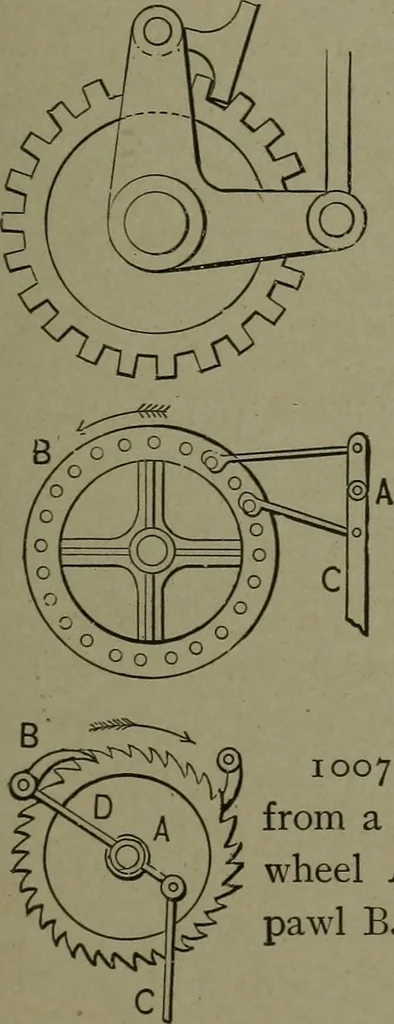

1004. RATCHET INTERMITTENTMOTION, by the operation of treadles. Pawllevers and pawls are operated through con-necting rods to levers or treadles, the motionof which is made uniform by the strap andpulley attachment C. … 1005. INTERMITTENT CIRCULARMOTION—^Reversible by throwing over adouble pawl on the vibrating bell-crank lever.A feed motion for planing machines. 1006. INTERMITTENT ROTARYMOTION of a ^yheel by vibrating levers andp^wls..- ^^l^-^^i^*^<i^ f^^ B, pin-tooth wheel. A, vibrating lever. V .z-* /
