Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 313

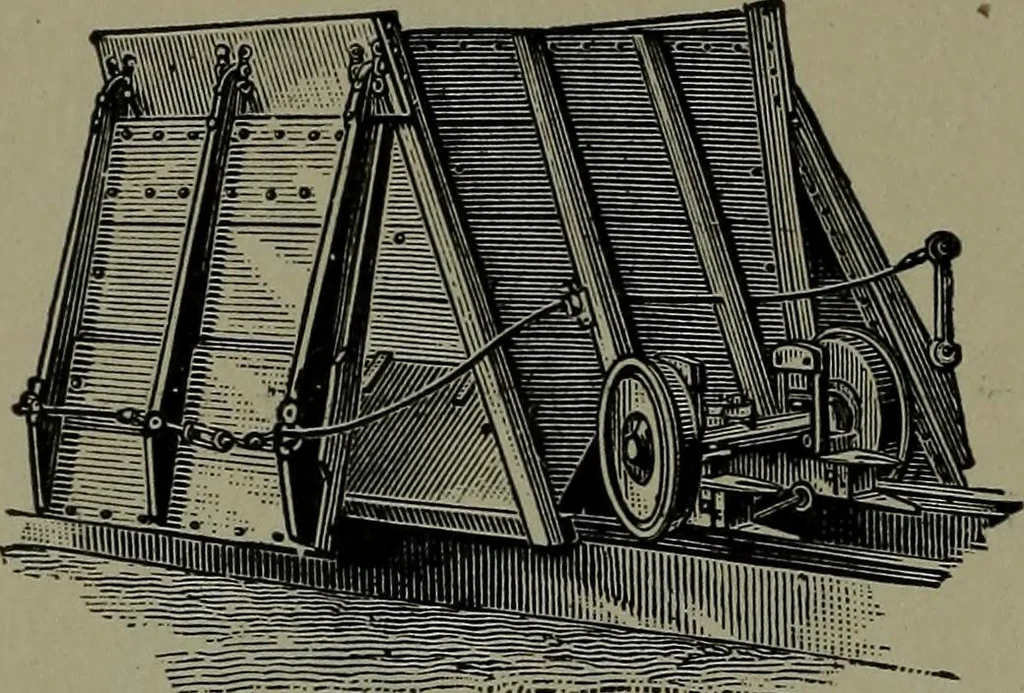

1228. LOG CONVEYOR.—A link chamwith hooks running in a trough. 1229. ROPE TRAMWAY, over-head system. Elevation, showingthe switch rails for transferring thecarrier bucket around the terminal tothe return rope. Loading or unload-ing of the bucket is done at thetransfer switch. 1230. Plan showing the… … 1231. AUTOMATIC DUMP-ING CAR. —The floor of thecar slopes upward to the centreat an angle that will allow thematerial to slide out. A chockat any point desired for dump-ing trips the holding-lever andreleases both side doors at once.
Mechanical movements
