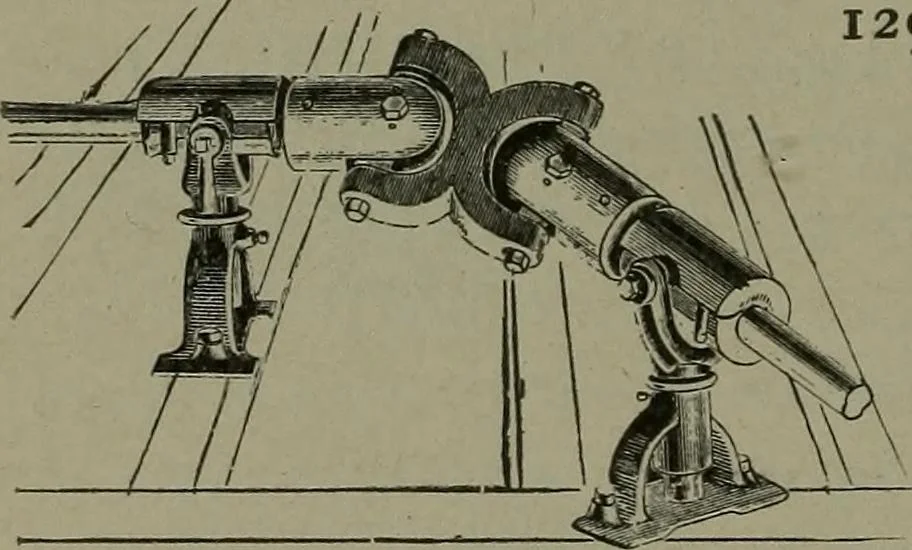

An illustration from Mechanical movements, powers, devices and appliances, 1901, leaf 327 — sliding motion. 1292. The cross keyperspective at the right. m … 1293. ANGLE SHAFT COUPLING, Robes patent. The shaft headsare slotted, in which cross barsare pivoted ; the ends of the crossbars are also pivoted to the armsof the double yoke, giving a freemotion to the driven shaft at anyangle greater than a right angle.
