Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 381

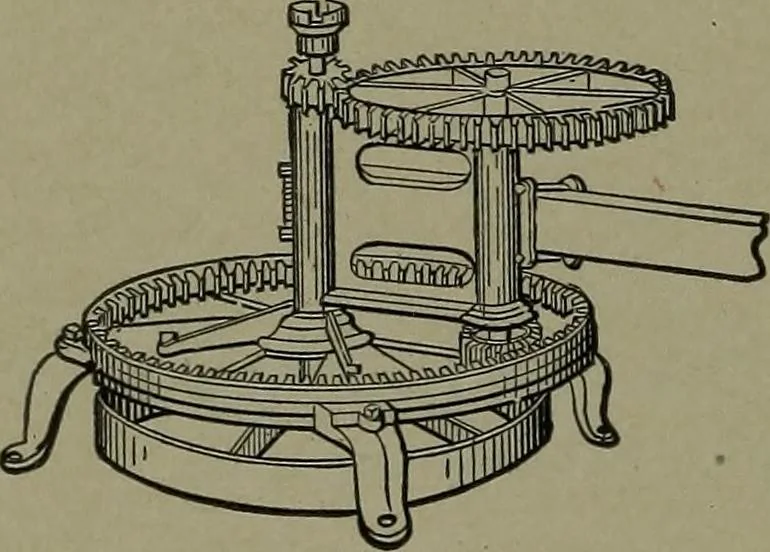

1535. DOG-POWER MACHINE. —The plane of the track wheel is setat an angle of about 200, with itsunder edge bearing upon a frictionpulley. Shaft and fly-wheel, withcrank for operating churn. … 1536. GEARED HORSE^POWER.—The sweep carries the pinion and spurgear on the second shaft around thestationary spur gear, rotating the centralshaft and pulley at high speed. 1537-
Mechanical movements
