Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 403

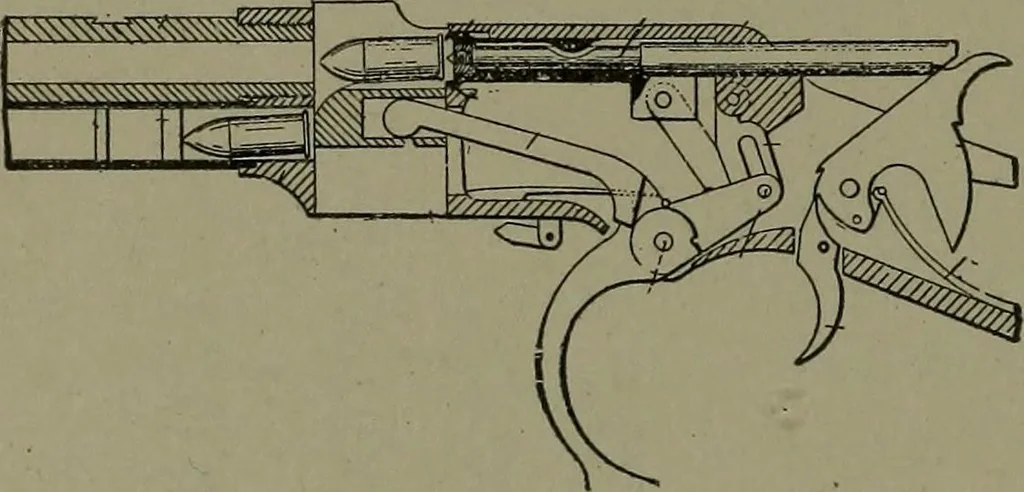

1638. GUN LOCK.—I, lock plate;2, hammer; 3, mainspring; 4, tum-bler; 5, sear or trigger lever; 6, searspring. 1639. COLT CYLINDER REVOLVINGDEVICE for firearms. a^ the pawl thatcatches the circular ratchet <^; c^ a spring thatpushes the pav^^l into the teeth of the ratchet;D, the hammer butt to… … 1640. MAGAZINE RIFLE, Lee - Metford model.Magazine in the barrel stock.
Mechanical movements
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
