Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 50

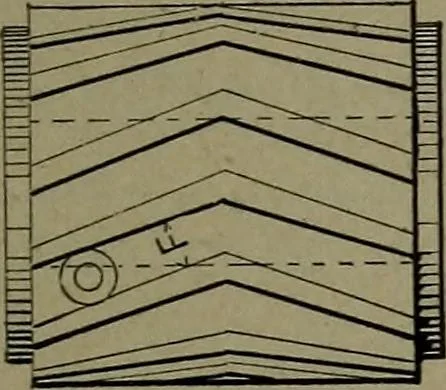

122. V-TOOTHED GEARING.—The obli-quity of the teeth from the centre of the faceneutrahzes the longitudinal thrust of plain obliqueteeth, as shown in the next pair. f^ 123. OBLIQUE TOOTH GEAR.—A smoothrunning gear, with slight longitudinal thrust dueto the inclined tooth surfaces. … 124. V-TOOTHED GEAR.—The teeth of whichare usually inclined from the centre lines of the faceequal to the amount of the pitch at the outer ends.
Mechanical movements
