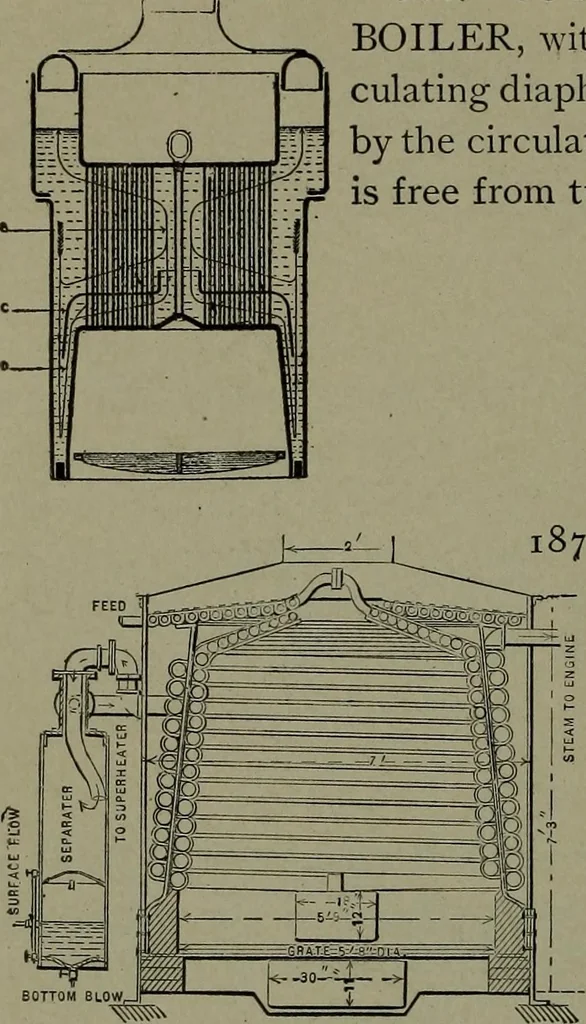

ILER.—Inclinedstraight tubes expanded in vertical steelheaders, connected to a steam drumabove. Partitions repass the flamethrough the tube spaces. 185. HARRISON BOILER.—A series of cast-iron globes with groundjoints, held together by through bolts. 6o STEAM POWER. J 186. SUBMERGED HEAD VERTICAL V… … HERRESHOFF BOILER.—A horizontal volute coil at thetop acts as a heater. The innercoil is the evaporator; the outercoil is the superheater. A separa-tor entraps the water that may becarried over from the evaporatingcoil. BOTTOM BLOW,
