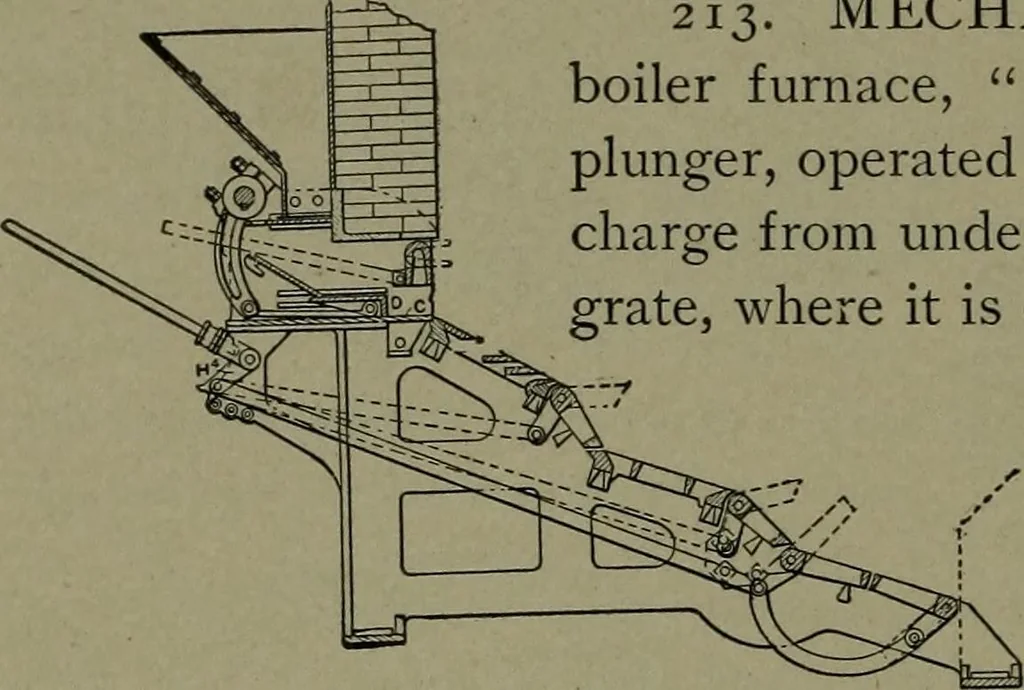

212. MECHANICAL STOKER for a furnace, Jones model, under-feed to the grate. A plunger, whichmay be operated directly by a steampiston, pushes a charge of coal, fallingfrom the hopper, on to the fore plate of the grate, where it is coked, the smoke and gases being drawn into the hot lire and burned.… … 213. MECHANICAL STOKER for aboiler furnace, Meissner model. A wideplunger, operated from a rock shaft, pushes thecharge from under the hopper on to the step-grate, where it is coked and worked down the inclined rocking gate.
