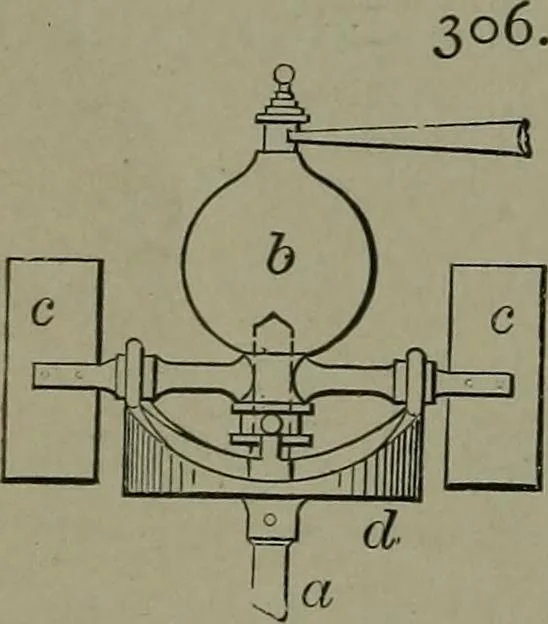

An illustration from Mechanical movements, powers, devices and appliances, 1901, leaf 95 — rank lever M, L, and by its actioa.controls the throttle valve. GOVERNOR FOR A STEAM ENGINE (old).•—A revolving sjDindle, a, carries with it a pair ofcylindrical inclined planes, d. The ball b, frameand wings c, slide freely upon an extension ofthe spindle. The varying air resistance given tothe… … ^H, U TO REGULATOR
