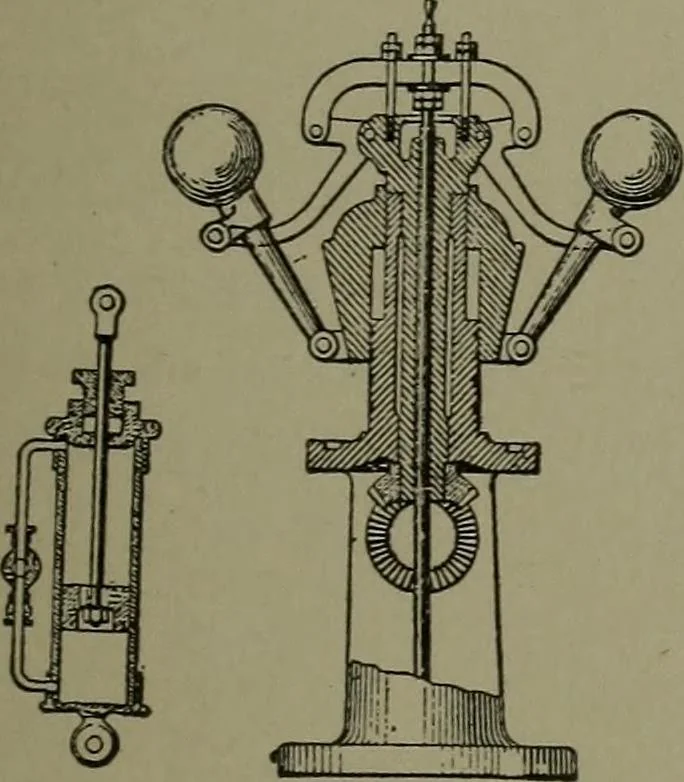

308. ■ HUNTOON GOVERNOR.—A ribbed cylinder, A, is partly filledwith oil. A paddle wheel, B, is re-volved by the pulley and shaft whichby fluid friction moves the ribbed cyl-inder and pinion in the same direction.The pinion meshes in the toothed sec-tor, which is counterbalanced bv anadjustable… … 31T. PROELL GOVERNOR.—In addition to the weight lifted by the cen-trifugal balls, an air dash pot is used inthe line of the central rod connected atthe top by a yoke pivoted to the bellcrank arms. The dash pot with bye passis shown at the left.
