Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 104

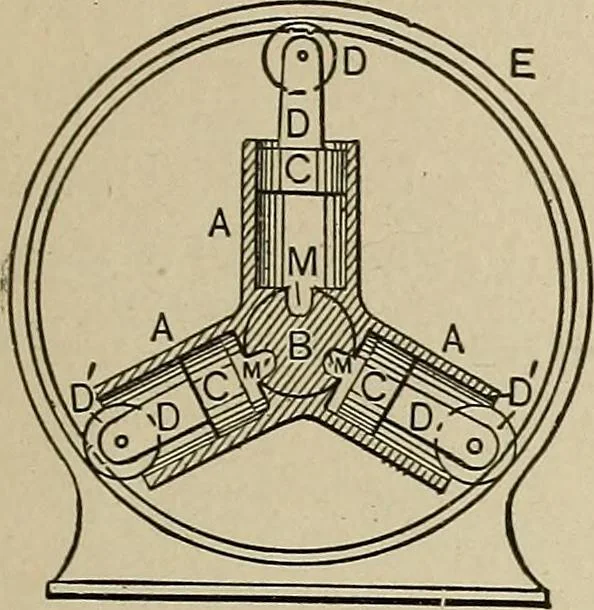

a disc \-alve with inlet and exhaustthrough the hollow shaft.346. Section. STEAM POWER. 95 347. RUTHS ROTARY ENGINE.—A revolving cylinder engine. Three cylinders,A, A, A, radiate from a shaft set eccentric toan outer circle or ring on which the ^pistonconnected sheaves revolve. The pistons…
Mechanical movements
