Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 134

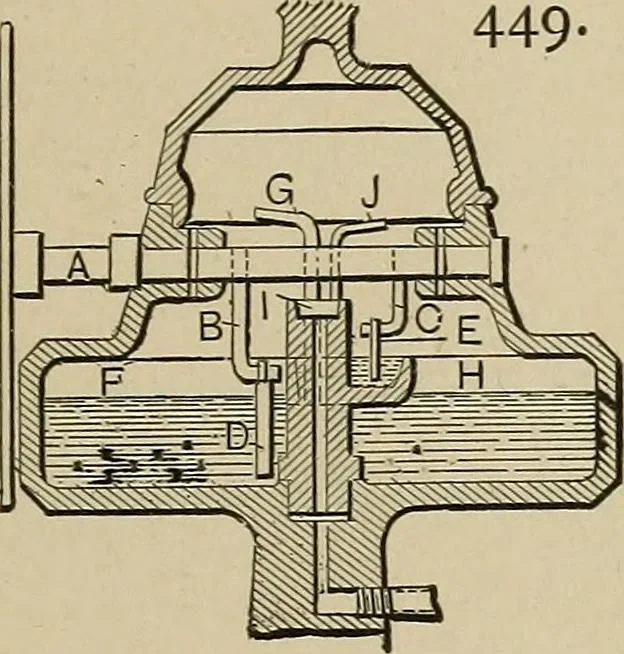

448. AUTOMATIC OILER.—Much iause on explosive motors. Shaft c, andcranky, with the dip wire d^ are revolved bya belt dropping the oil on the wiper e^ into-the small tank/, from which it flows to thecylinder. … 449. UNIFORM AUTOMATIC OILER.—Used on gas engines. The shaft, driven by abelt from the valve-gear shaft of the engine,carries two hooks and dip wires, one ofwhich raises the oil from the variable levelbelow to a constant level oil reservoir, fromwhich the second hook and dip wire feedthe wiper that…
Mechanical movements
