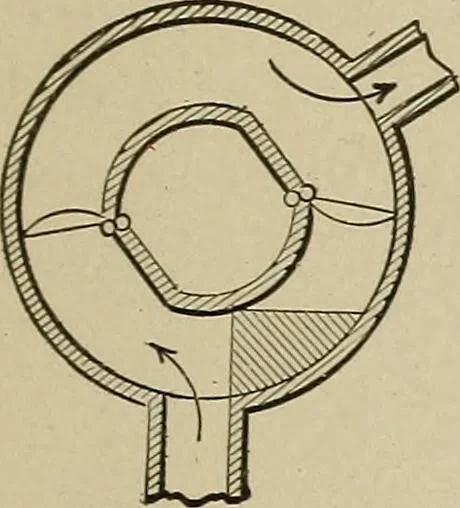

An illustration from Mechanical movements, powers, devices and appliances;, 1903, leaf 156 — 542. COCHRANE ROTARY PUMP.-A b slide pocket in the outer shell receives the piston11 wing of the inner eccentric cylinder, which swings in contact with the shell on its centre, 2, carried around by a cam crank. … 543. One of the early forms of Rotary Pumps.Only suitable for free flow to the pump. Will notlift. Obsolete. 544. HYDRAULIC TRANSMISSION OFPOWER.—A driving rotarypump connected by a flowand return pipe to a driven rotarv motor at any convenient distance.Has been applied to bicvcles.
