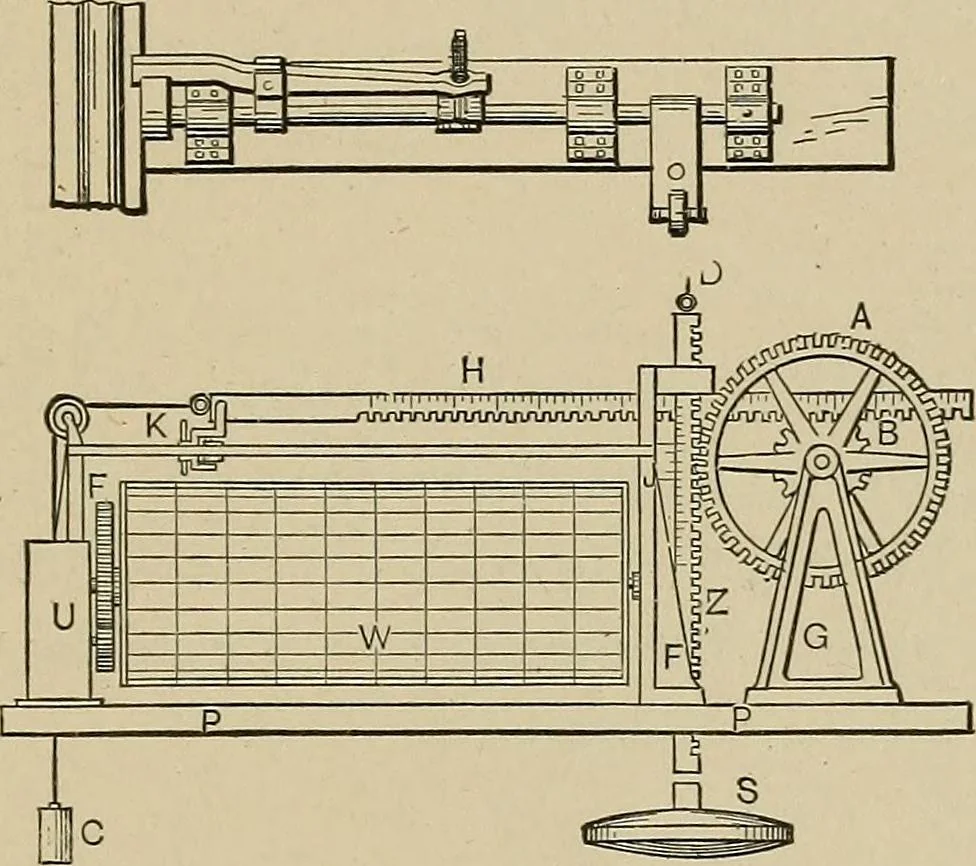

F REGIS-TERING TIDE GAUGE.—S is the float in the tide well;Z the rack meshed in the wheelA; B is a pinion meshed in thehorizontal rack H, which car-ries the marking point K. Thebarrel W carries a papermarked by the hours of the day and driven by a clock. D andC are tension weights to take up any…
