Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 252

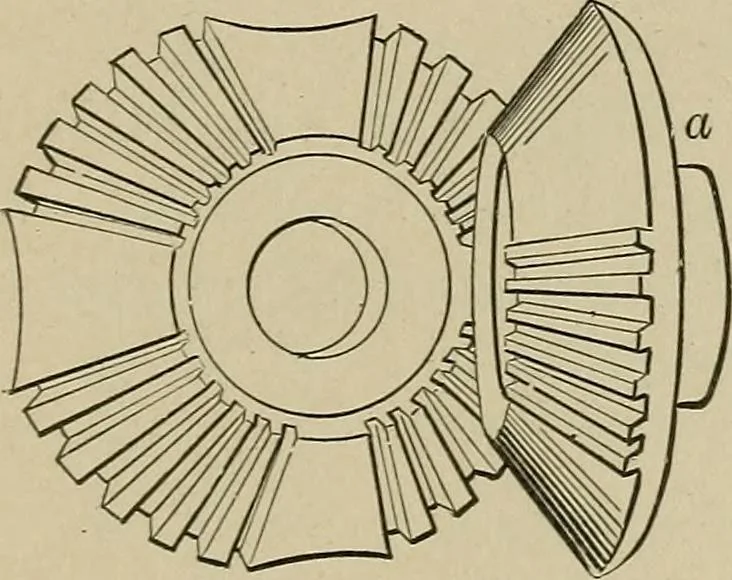

958. MITER INTERMITTENTGEARS.—The driver makes one revolu-tion to one-quarter of a revolution of thedriven gear. The blank part of the driv-ing gear is milled down to the pitch line,and runs in the corresponding concaveof the four-part driven gear. 959. INTERMITTENT ROTARY MOTION,from continuous…
Mechanical movements
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
