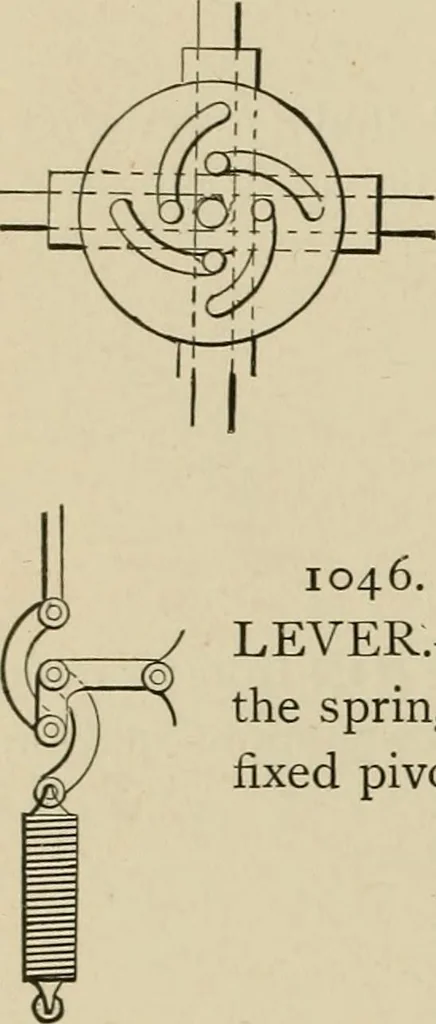

1044. VARIABLE ADJUSTMENT for thetension of a spring on the motion of a connectingrod, by varving the radii of a rocking lever. … 1045. FOUR-BOLT CAM PLATE, usedfor throwing safe bolts and for expanding dies. 1046. EQUALIZING TENSION SPRING ANDLEVER.—The bell-crank lever equalizes the tension ofthe spring by its varying position. Its long arm is on afixed pivot.
